1：1 ZEUS Series / Ultra-Quiet Motorized Projection Screen
🔌Power Cord Location: Right side when facing the screen.

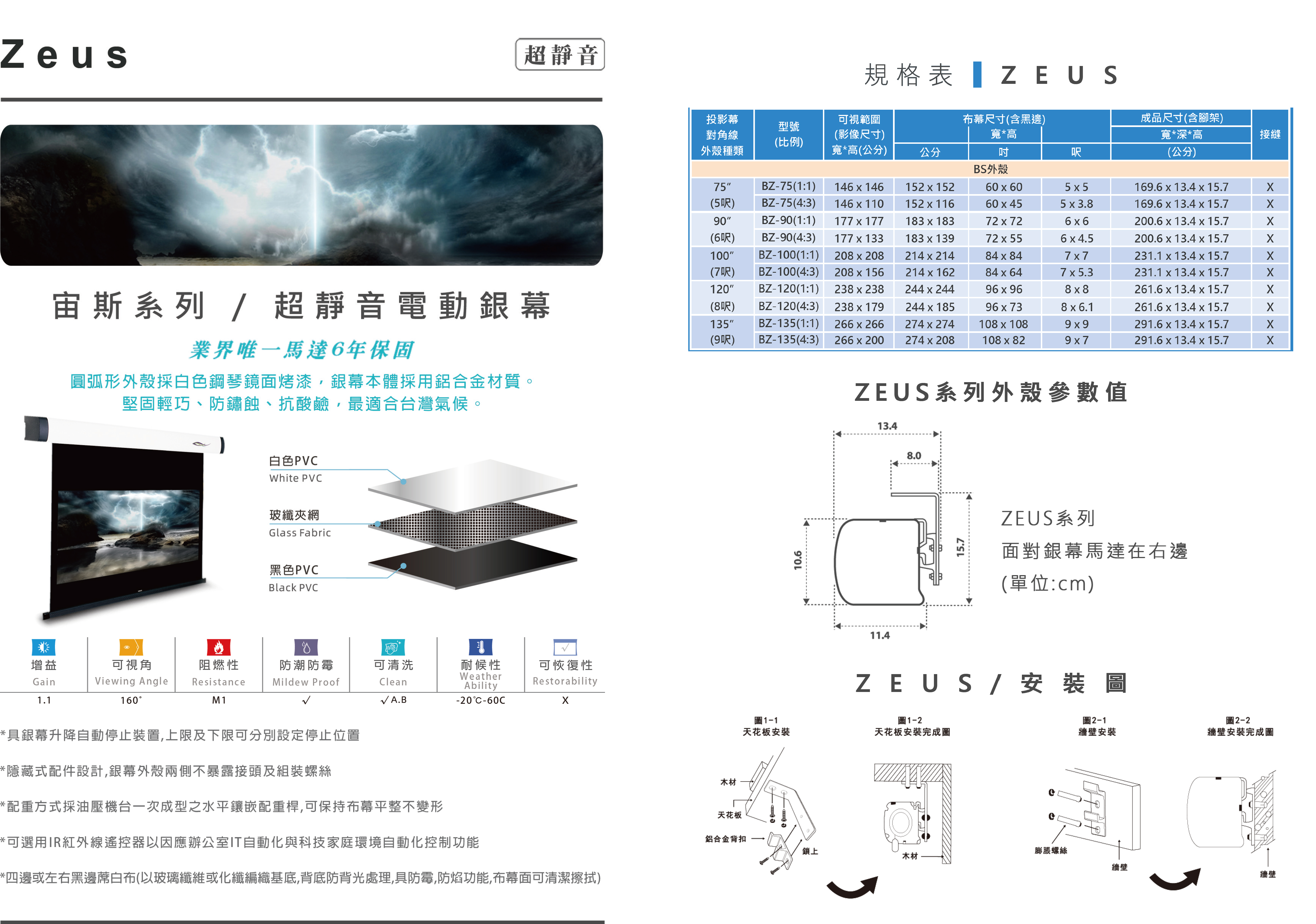

⏹︎ Dimensions & Installation
⏹︎ Product Highlights
Industry-exclusive 6-year motor warranty
Curved housing finished with white piano-gloss coating for a premium appearance
Sliding rail or fixed bracket mounting design for easy wall or ceiling installation
Built-in automatic stop system with adjustable upper and lower limit positions
Hidden accessory design keeps connectors and assembly screws concealed for a clean, elegant finish
One-piece hydraulic-formed weighted bar maintains excellent screen flatness without deformation
Optional IR infrared remote control available for office automation and smart home integration
Matte white screen material available with four-side or left/right blackborders.Fiberglass or synthetic woven backing with blackout rear coating for enhanced image performance
| Size | Model No. |
Viewing Area W x H (cm) |
Overall Screen Dimensions (Incl. Borders) W x H |
Product Dimensions (Incl. Brackets) W x D x H cm |
Seam | ||
|---|---|---|---|---|---|---|---|
| cm | inch | ft | |||||
| Case Series: BS (Zeus) | |||||||
| 75” | BZ-75(1:1) | 146 x 146 | 152 x 152 | 60 x 60 | 5 x 5 | 169.6 x 13.4 x 15.7 | X |
| 90” | BZ-90(1:1) | 177 x 177 | 183 x 183 | 72 x 72 | 6 x 6 | 200.6 x 13.4 x 15.7 | X |
| 100” | BZ-100(1:1) | 208 x 208 | 214 x 214 | 84 x 84 | 7 x 7 | 231.1 x 13.4 x 15.7 | X |
| 120” | BZ-120(1:1) | 238 x 238 | 244 x 244 | 96 x 96 | 8 x 8 | 261.6 x 13.4 x 15.7 | X |
| 135” | BZ-135(1:1) | 266 x 266 | 274 x 274 | 108 x 108 | 9 x 9 | 291.6 x 13.4 x 15.7 | X |
