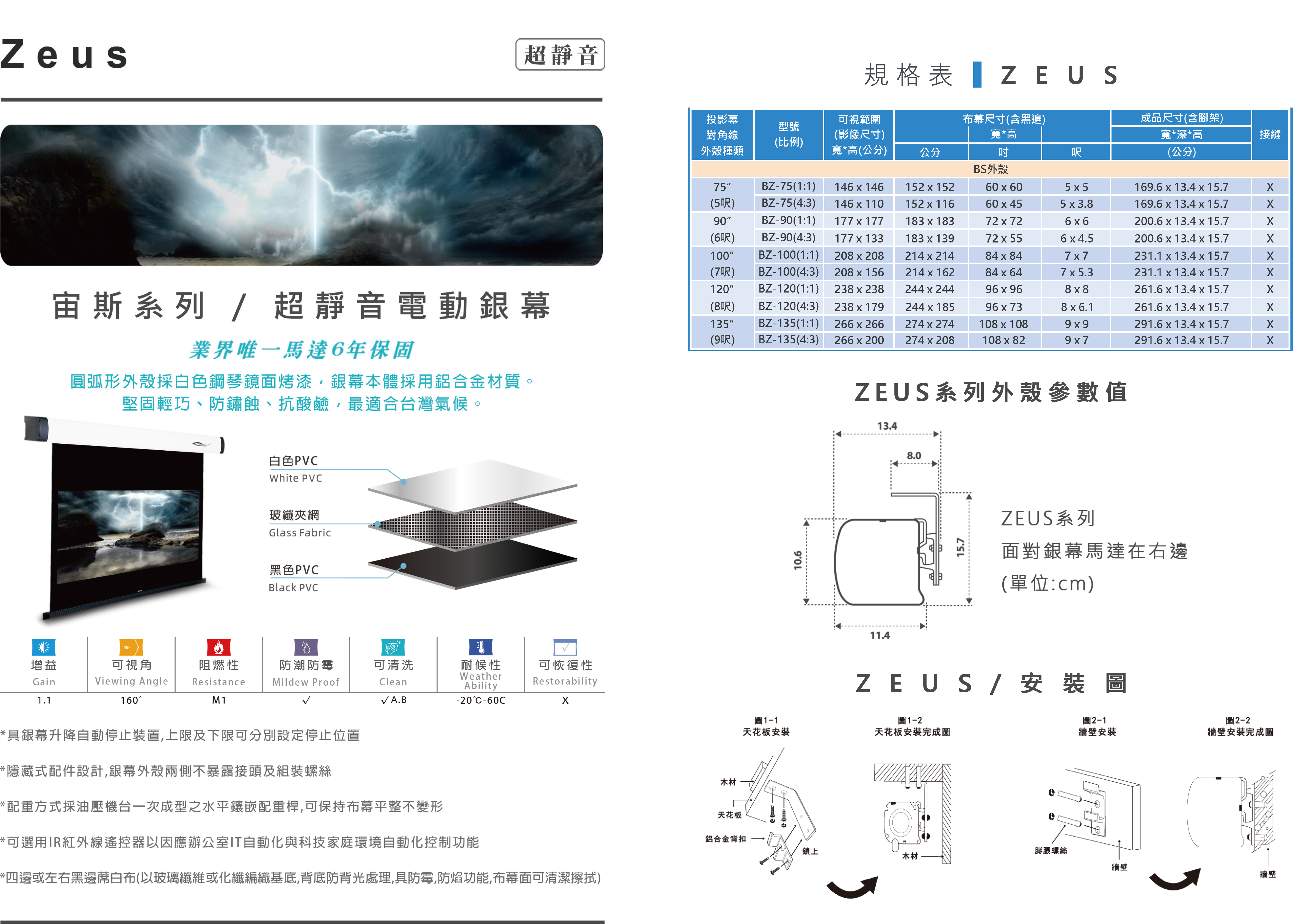

4：3 ZEUS Series / Ultra-Quiet Motorized Projection Screen
🔌Power Cord Location: Right side when facing the screen.
Industry-exclusive 6-year motor warranty
Curved housing finished with white piano-gloss coating for a premium appearance
Sliding rail or fixed bracket mounting design for easy wall or ceiling installation
Built-in automatic stop system with adjustable upper and lower limit positions
Hidden accessory design keeps connectors and assembly screws concealed for a clean, elegant finish
One-piece hydraulic-formed weighted bar maintains excellent screen flatness without deformation
Optional IR infrared remote control available for office automation and smart home integration
Matte white screen material available with four-side or left/right blackborders.Fiberglass or synthetic woven backing with blackout rear coating for enhanced image performance
| Size | Model No. |
Viewing Area W x H (cm) |
Overall Screen Dimensions (Incl. Borders) W x H |
Product Dimensions (Incl. Brackets) W x D x H cm |
Seam | ||
|---|---|---|---|---|---|---|---|
| cm | inch | ft | |||||
| Case Series: BS (Zeus) | |||||||
| 75” | BZ-75(4:3) | 146 x 110 | 152 x 116 | 60 x 45 | 5 x 3.8 | 169.6 x 13.4 x 15.7 | X |
| 90” | BZ-90(4:3) | 177 x 133 | 183 x 139 | 72 x 55 | 6 x 4.5 | 200.6 x 13.4 x 15.7 | X |
| 100” | BZ-100(4:3) | 208 x 156 | 214 x 162 | 84 x 64 | 7 x 5.3 | 231.1 x 13.4 x 15.7 | X |
| 120” | BZ-120(4:3) | 238 x 179 | 244 x 185 | 96 x 73 | 8 x 6.1 | 261.6 x 13.4 x 15.7 | X |
| 135” | BZ-135(4:3) | 266 x 200 | 274 x 208 | 108 x 82 | 9 x 7 | 291.6 x 13.4 x 15.7 | X |
