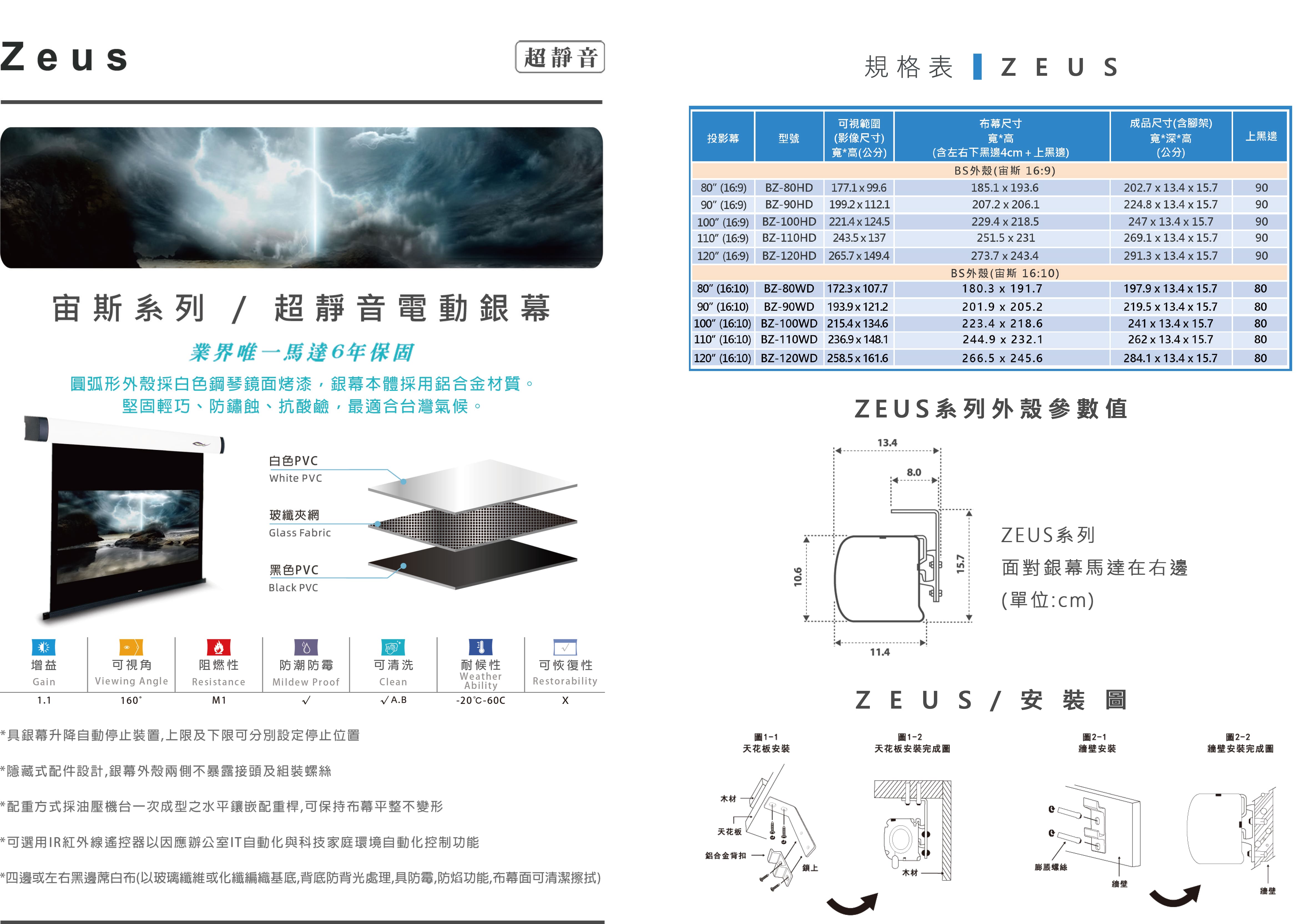

16：10 ZEUS Series / Ultra-Quiet Motorized Projection Screen
🔌Power Cord Location: Right side when facing the screen.
⏹︎ Product Highlights
Industry-exclusive 6-year motor warranty
Curved housing finished with white piano-gloss coating for a premium appearance
Sliding rail or fixed bracket mounting design for easy wall or ceiling installation
Built-in automatic stop system with adjustable upper and lower limit positions
Hidden accessory design keeps connectors and assembly screws concealed for a clean, elegant finish
One-piece hydraulic-formed weighted bar maintains excellent screen flatness without deformation
Optional IR infrared remote control available for office automation and smart home integration
Matte white screen material available with four-side or left/right black borders.Fiberglass or synthetic woven backing with blackout rear coating for enhanced image performance
| Size | Model No. |
Viewing Area (W x H) cm |
Overall Screen Dimensions (W x H) (Incl. 4cm Borders & 90cm Top Drop) |
Product Dimensions (Incl. Brackets) W x D x H cm |
Top Drop |
|---|---|---|---|---|---|
| Case Series: BS (Zeus) | |||||
| 80” | BZ-80WD | 172.3 x 107.7 | 180.3 x 191.7 |
197.9 x 13.4 x 15.7
|
80 |
| 90” | BZ-90WD | 193.9 x 121.2 | 201.9 x 205.2 |
219.5 x 13.4 x 15.7
|
80 |
| 100” | BZ-100WD | 215.4 x 134.6 | 223.4 x 218.6 | 241 x 13.4 x 15.7 | 80 |
| 110” | BZ-110WD | 236.9 x 148.1 | 244.9 x 232.1 | 262 x 13.4 x 15.7 | 80 |
| 120” | BZ-120WD | 258.5 x 161.6 | 266.5 x 245.6 |
284.1 x 13.4 x 15.7
|
80 |
