1：1 Poseidon Series / Standard Motorized Screen
🔌Power Cord Location: Left side when facing the screen.

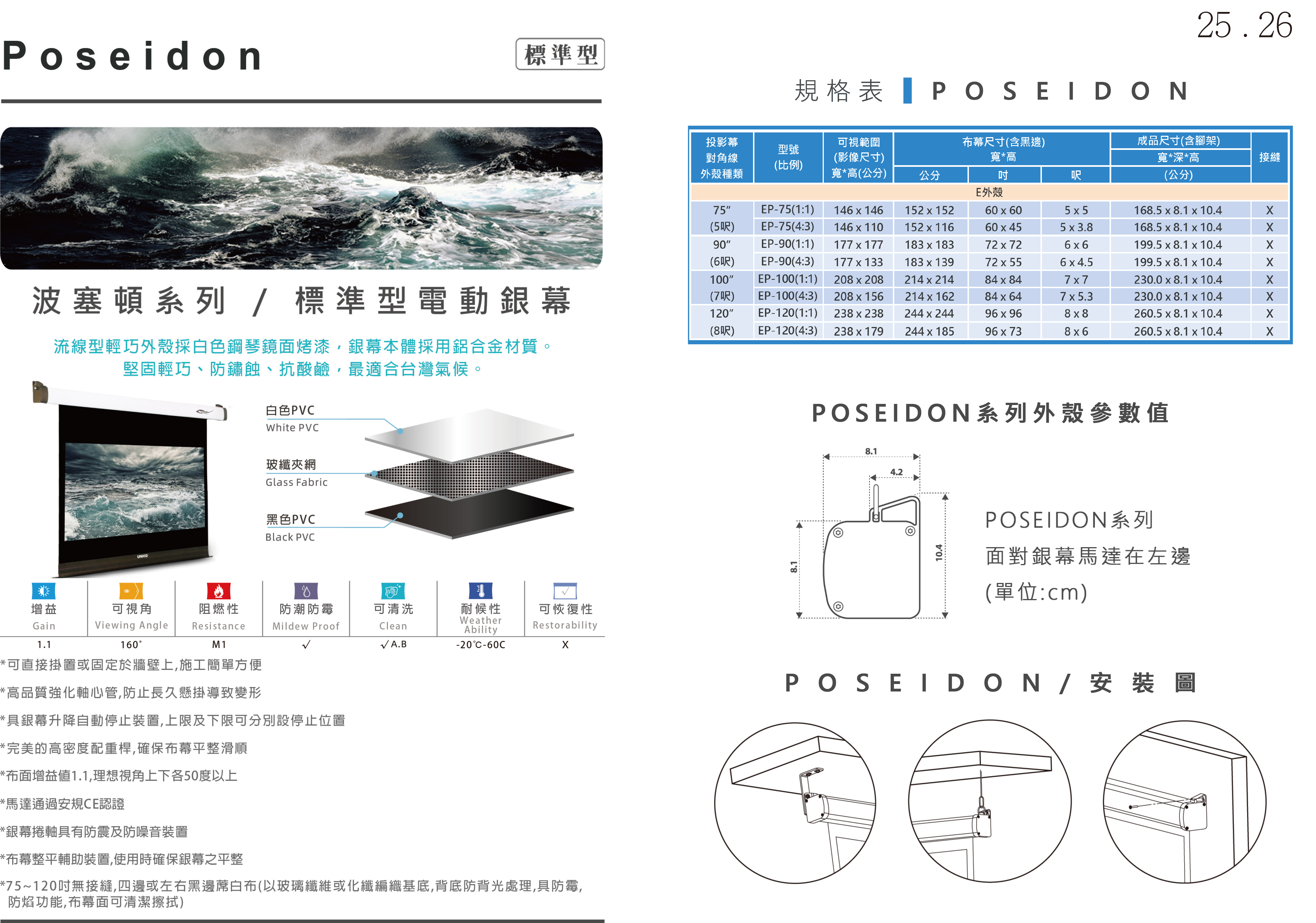

⏹︎ Dimensions & Installation
__25L09uNj1b.png)
High-quality reinforced roller tube designed to prevent deformation from long-term suspension.
The streamlined lightweight housing features a white piano-gloss finish, while the screen casing is made of aluminum alloy, offering a strong yet lightweight structure with excellent resistance to rust, acids, and alkalis.
Can be directly wall-mounted or fixed to the wall, allowing simple and convenient installation.
Equipped with an automatic stop mechanism for screen operation, allowing independent adjustment of upper and lower limit stop positions.
A screen leveling assist device ensures the screen remains flat and smooth during operation.
An optional IR infrared remote control is available to support office IT automation and smart home automation control systems.
Seamless design from 75" to 120". The matte white screen surface with black borders on all four sides or on the left and right is made from a fiberglass or synthetic fiber woven base, with a blackout backing to prevent light penetration. It is mildew-resistant, flame-retardant, and the surface can be cleaned and wiped.
| Size | Model No. |
Viewing Area W x H (cm) |
Overall Screen Dimensions (Incl. Borders) W x H |
Product Dimensions (Incl. Brackets) W x D x H cm |
Seam | ||
|---|---|---|---|---|---|---|---|
| cm | inch | ft | |||||
| Case Series: E (Poseidon) | |||||||
| 75” | EP-75(1:1) | 146 x 146 | 152 x 152 | 60 x 60 | 5 x 5 | 168.5 x 8.1 x 10.4 | X |
| 90” | EP-90(1:1) | 177 x 177 | 183 x 183 | 72 x 72 | 6 x 6 | 199.5 x 8.1 x 10.4 | X |
| 100” | EP-100(1:1) | 208 x 208 | 214 x 214 | 84 x 84 | 7 x 7 | 230.0 x 8.1 x 10.4 | X |
| 120” | EP-120(1:1) | 238 x 238 | 244 x 244 | 96 x 96 | 8 x 8 | 260.5 x 8.1 x 10.4 | X |
