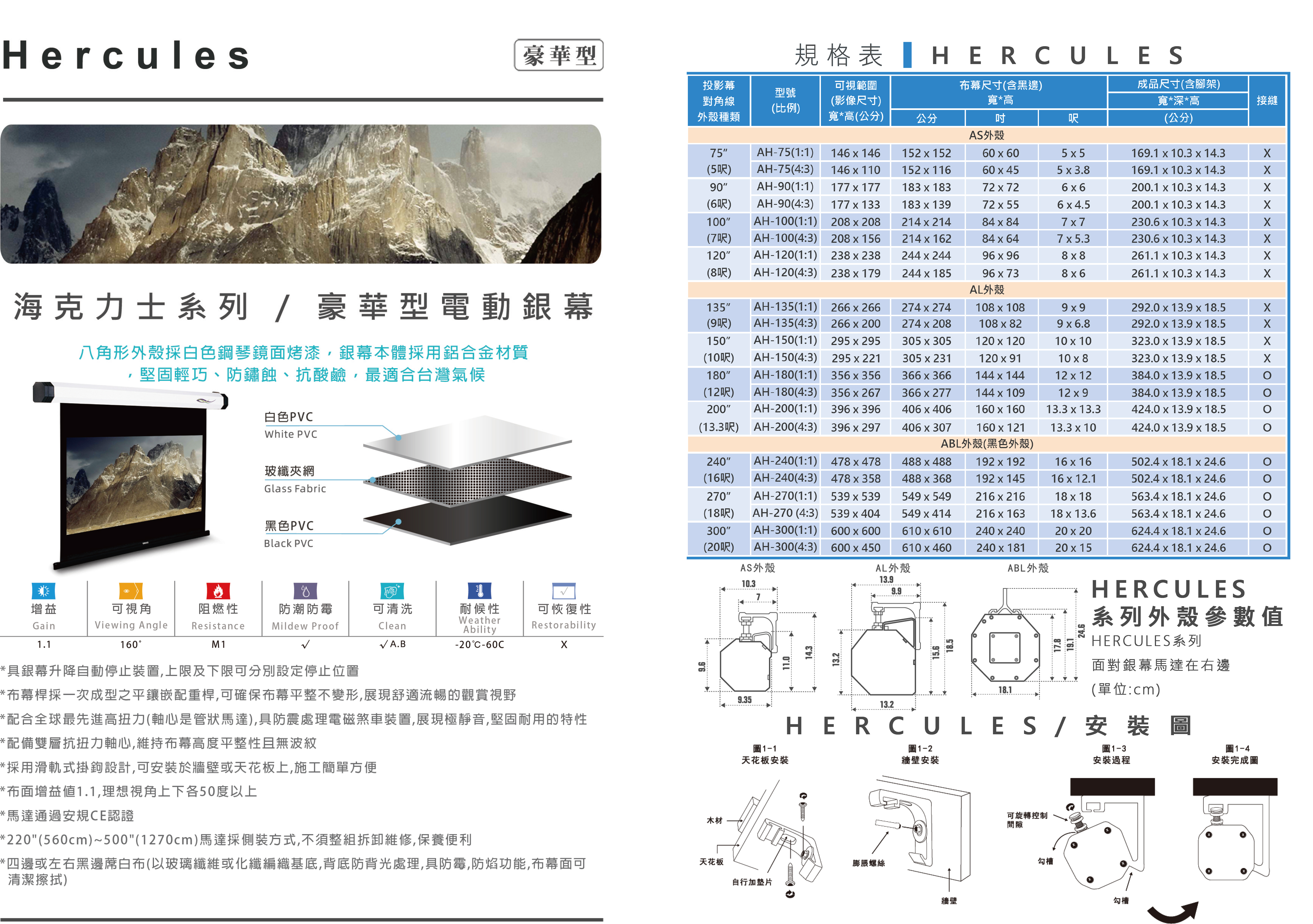

4：3 Hercules Series / Deluxe Motorized Screen
🔌Power Cord Location: Right side when facing the screen.
Equipped with the world’s most advanced high-torque shaft-type tubular motor, featuring an anti-vibration electromagnetic braking system for ultra-quiet operation, exceptional durability, and long-lasting performance.
The octagonal housing features a white piano-gloss finish, while the screen body is made of aluminum alloy, offering a lightweight yet durable structure with excellent resistance to rust, acids, and alkalis.
Designed with sliding rail or fixed mounting brackets, allowing easy installation on walls or ceilings with simple and convenient setup.
Equipped with an automatic stop mechanism for screen operation, allowing independent adjustment of upper and lower limit stop positions.
Features a concealed accessory design, with no exposed connectors or assembly screws on either side of the screen housing.
The counterweight system uses a hydraulically formed, one-piece horizontally embedded weighting bar to keep the screen flat and prevent deformation.
An optional IR infrared remote control is available to support office IT automation and smart home automation control systems.
Matte white screen material available with four-side or left/right blackborders.Fiberglass or synthetic woven backing with blackout rear coating for enhanced image performance
| Size | Model No. |
Viewing Area W x H (cm) |
Overall Screen Dimensions (Incl. Borders) W x H |
Case Dimensions (Incl. Brackets) W x D x H cm |
Seam | ||
|---|---|---|---|---|---|---|---|
| inch | ft | cm | |||||
| Case Series: AS (Hercules) | |||||||
| 75” | AH-75(4:3) | 146 x 110 | 60 x 45 | 5 x 3.8 | 152 x 116 |
169.1 x 10.3 x 14.3
|
X |
| 90” | AH-90(4:3) | 177 x 133 | 72 x 55 | 6 x 4.5 | 183 x 139 | 200.1 x 10.3 x 14.3 | X |
| 100” | AH-100(4:3) | 208 x 156 | 84 x 64 | 7 x 5.3 | 214 x 162 | 230.6 x 10.3 x 14.3 | X |
| 120” | AH-120(4:3) | 238 x 179 | 96 x 73 | 8 x 6 | 244 x 185 | 261.1 x 10.3 x 14.3 | X |
| Case Series: AL | |||||||
| 135” | AH-135(4:3) | 266 x 200 | 108 x 82 | 9 x 6.8 | 274 x 208 | 292.0 x 13.9 x 18.5 | X |
| 150” | AH-150(4:3) | 295 x 221 | 120 x 91 | 10 x 7.5 | 305 x 231 | 323.0 x 13.9 x 18.5 | X |
| 180” | AH-180(4:3) | 356 x 267 | 144 x 109 | 12 x 9 | 366 x 277 | 384.0 x 13.9 x 18.5 | O |
| 200” | AH-200(4:3) | 396 x 297 | 160 x 121 | 13.3 x 10 | 406 x 307 | 424.0 x 13.9 x 18.5 | O |
| Case Series: ABL (Black Case) | |||||||
| 240” | AH-240(4:3) | 478 x 358 | 192 x 145 | 16 x 12.1 | 488 x 368 | 502.4 x 18.1 x 24.6 | O |
| 270” | AH-270(4:3) | 539 x 404 | 216 x 163 | 18 x 13.6 | 549 x 414 | 563.4 x 18.1 x 24.6 | O |
| 300” | AH-300(4:3) | 600 x 450 | 240 x 181 | 20 x 15 | 610 x 460 | 624.4 x 18.1 x 24.6 | O |
