NEW Prometheus Series | Rollable LED Display System

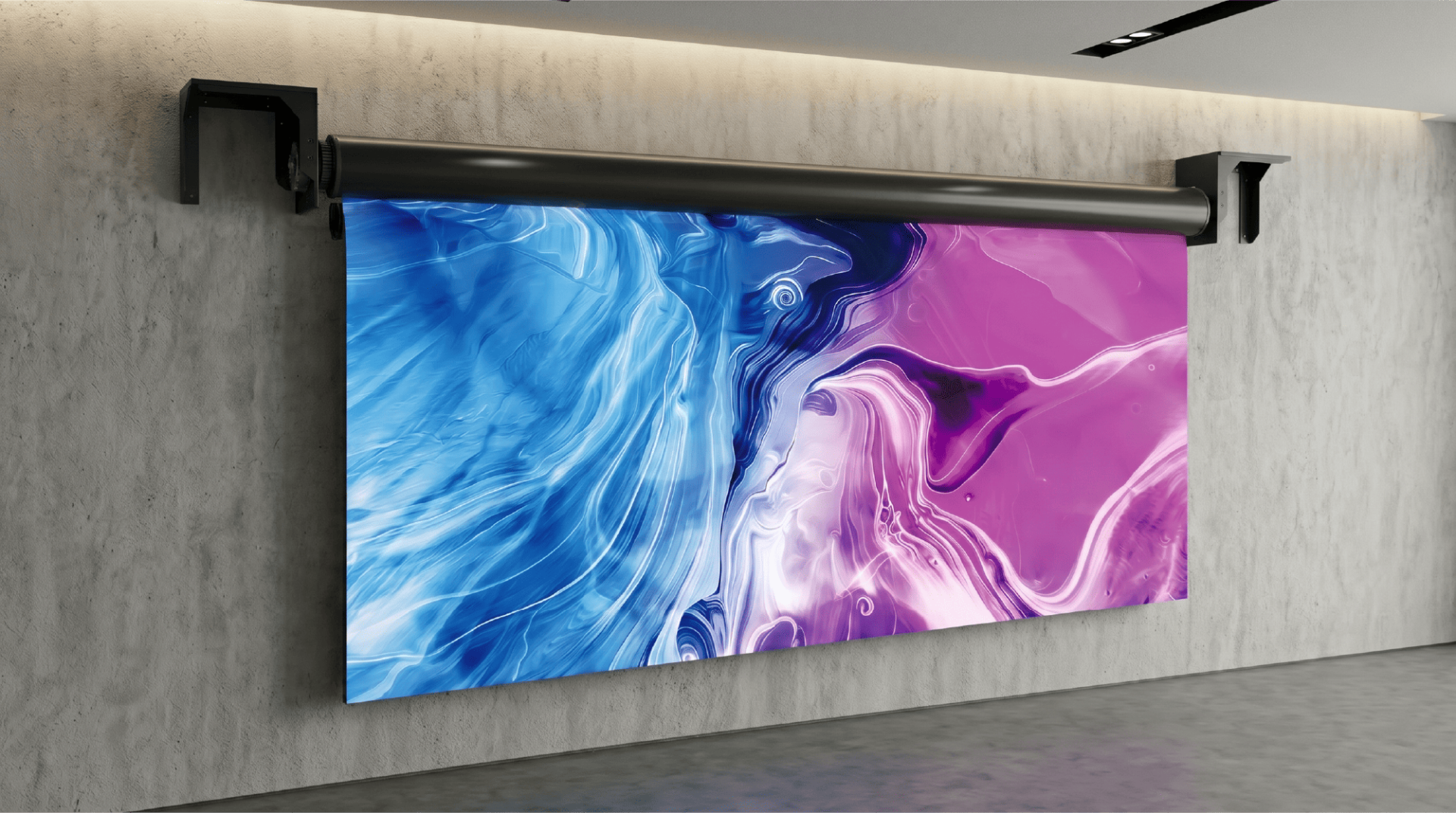

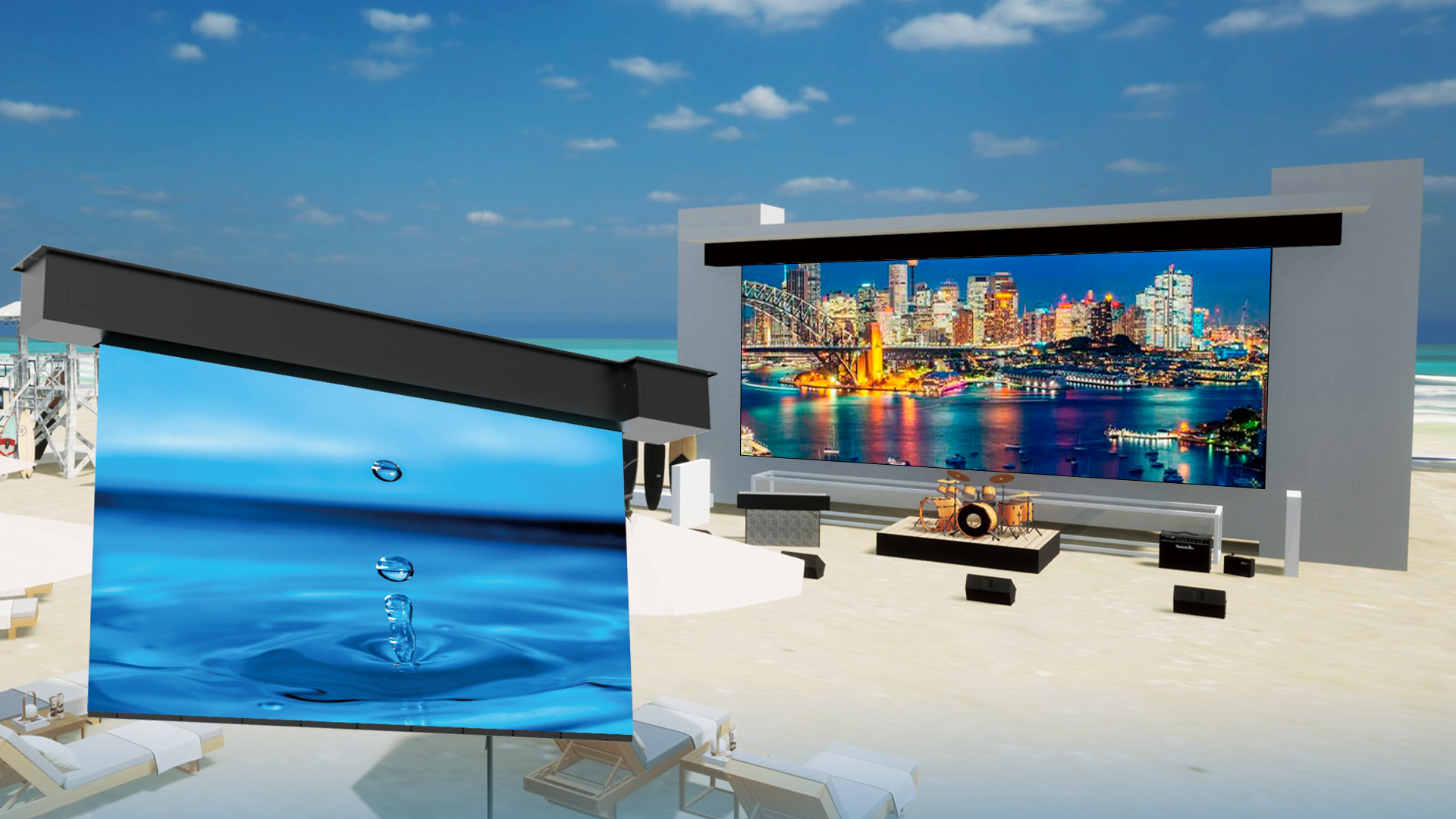

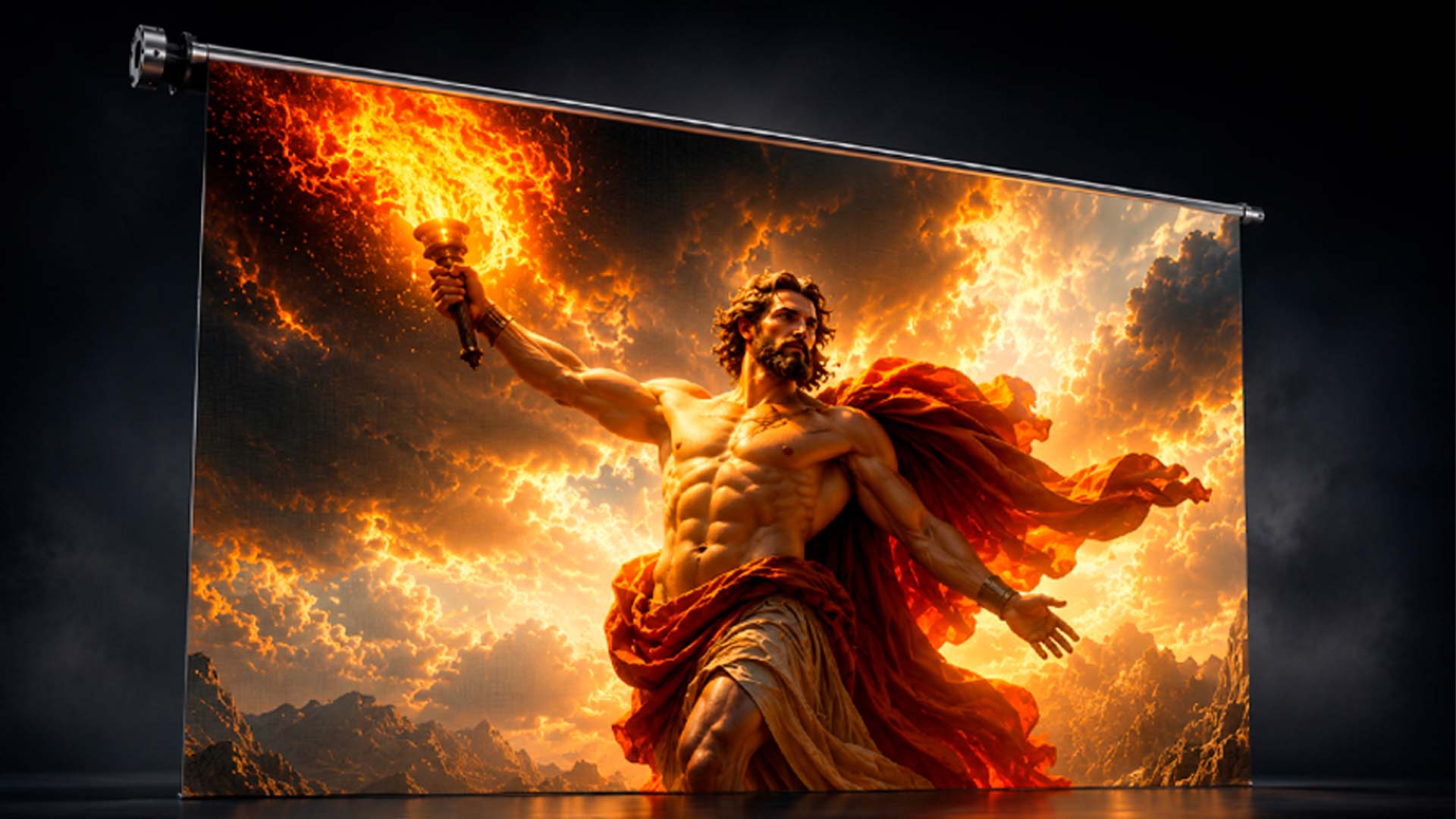

The PROMETHEUS Series Motorized Roll-Up LED Display combines the space-saving convenience of a projection screen with the brilliance of LED technology. Its retractable design allows the display to appear when needed and disappear when not, eliminating the space and installation limitations of traditional fixed LED displays.
Combining the "on-demand" and "stealth storage" benefits of traditional projection screens, the Prometheus Series eliminates the need for large LED displays to permanently occupy wall space, solving complex installation challenges.

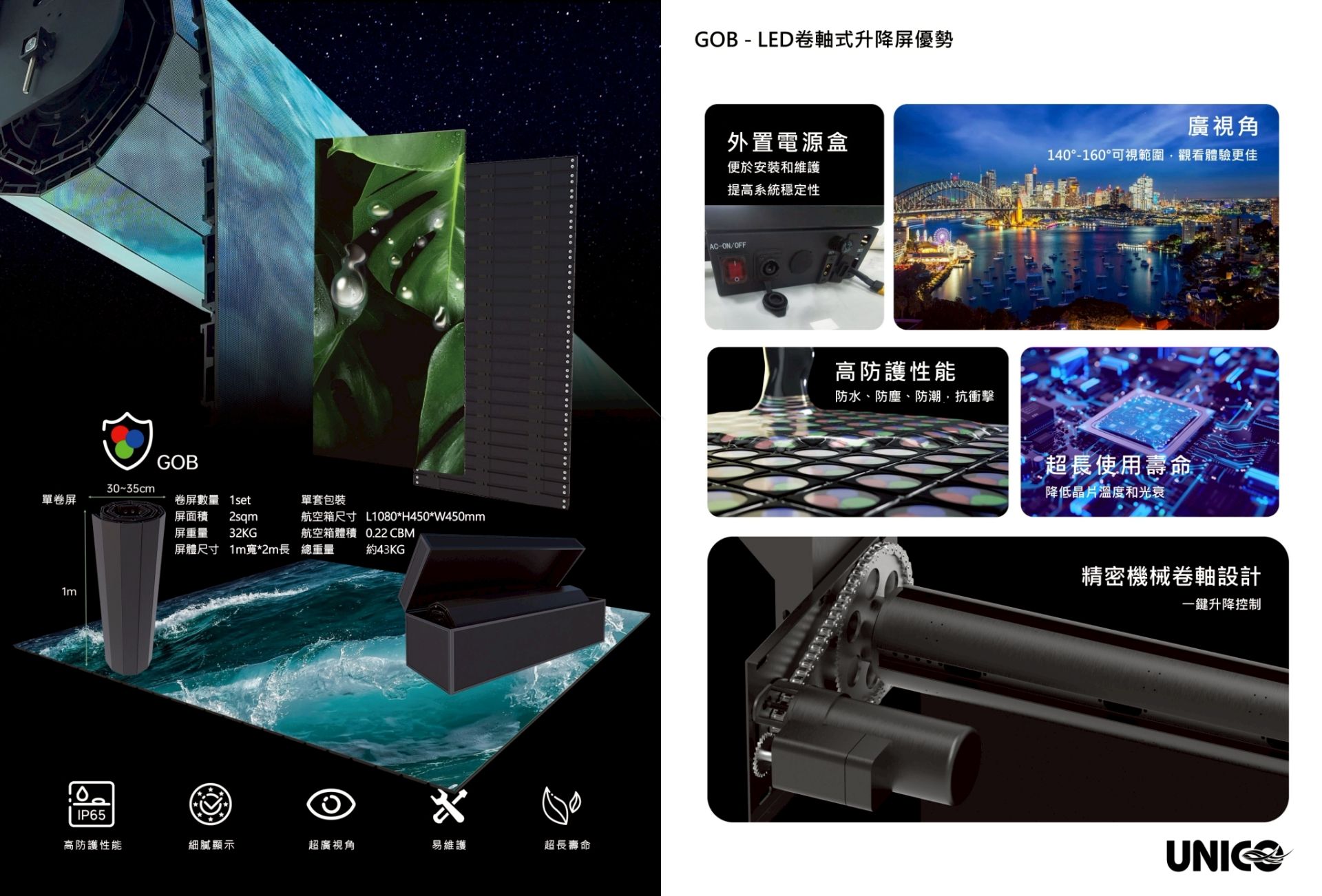

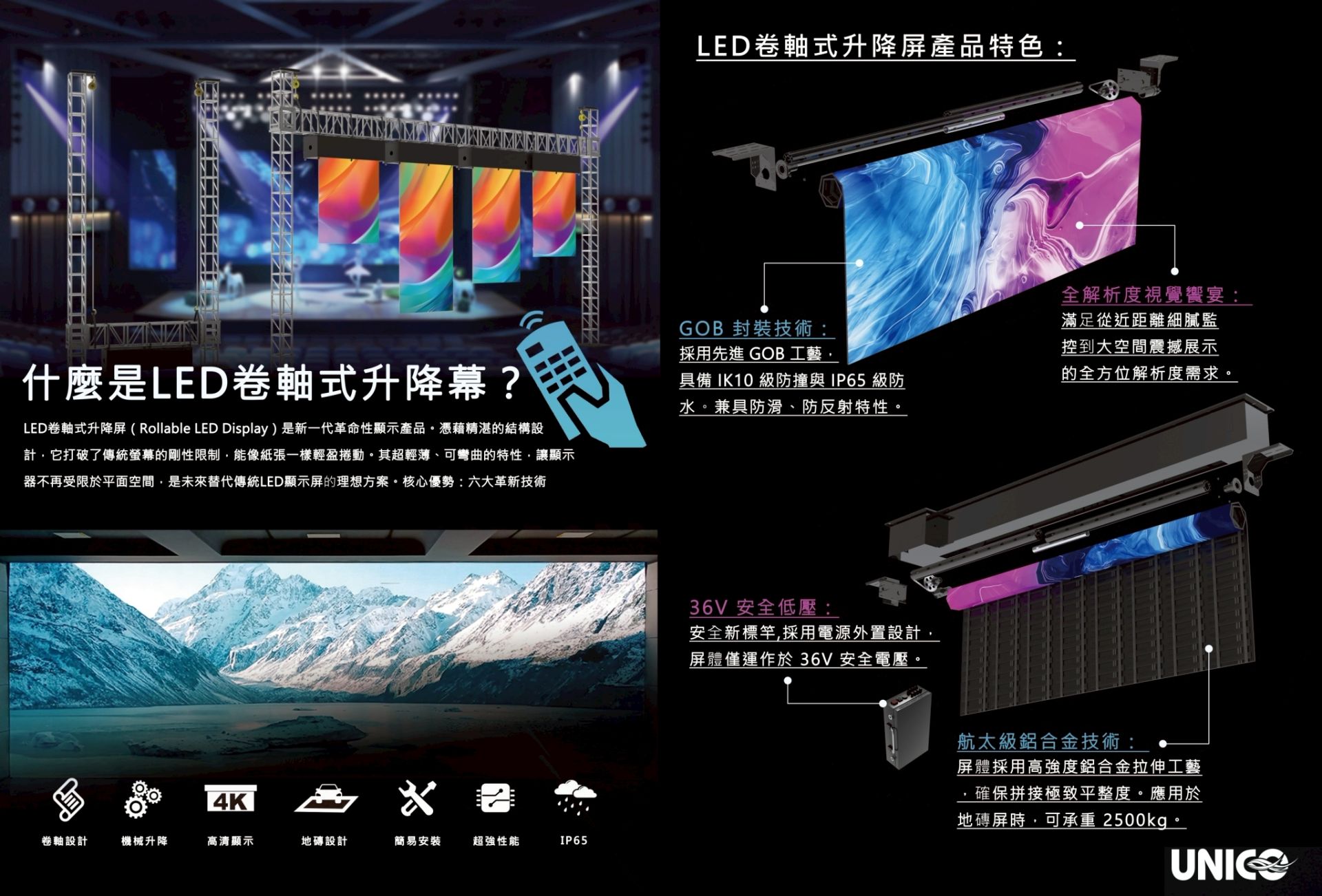

Engineered with advanced flexible GOB (Glue-on-Board) technology, the display achieves an IK10-grade impact resistance and IP65 waterproof rating for maximum durability.
Engineered with advanced flexible GOB (Glue-on-Board) technology, the display achieves an IK10-grade impact resistance and IP65 waterproof rating for maximum durability.
Unlike traditional screens that wash out under bright lights, our self-emissive LED technology provides high brightness and contrast. Even in naturally lit churches or high-intensity mall environments, the imagery remains vivid and sharp.
Supporting fine pixel pitches from P0.78 to P1.9, the series effortlessly achieves 4K/8K UHD visuals, satisfying the needs of both close-range classroom teaching and long-distance stage performances.

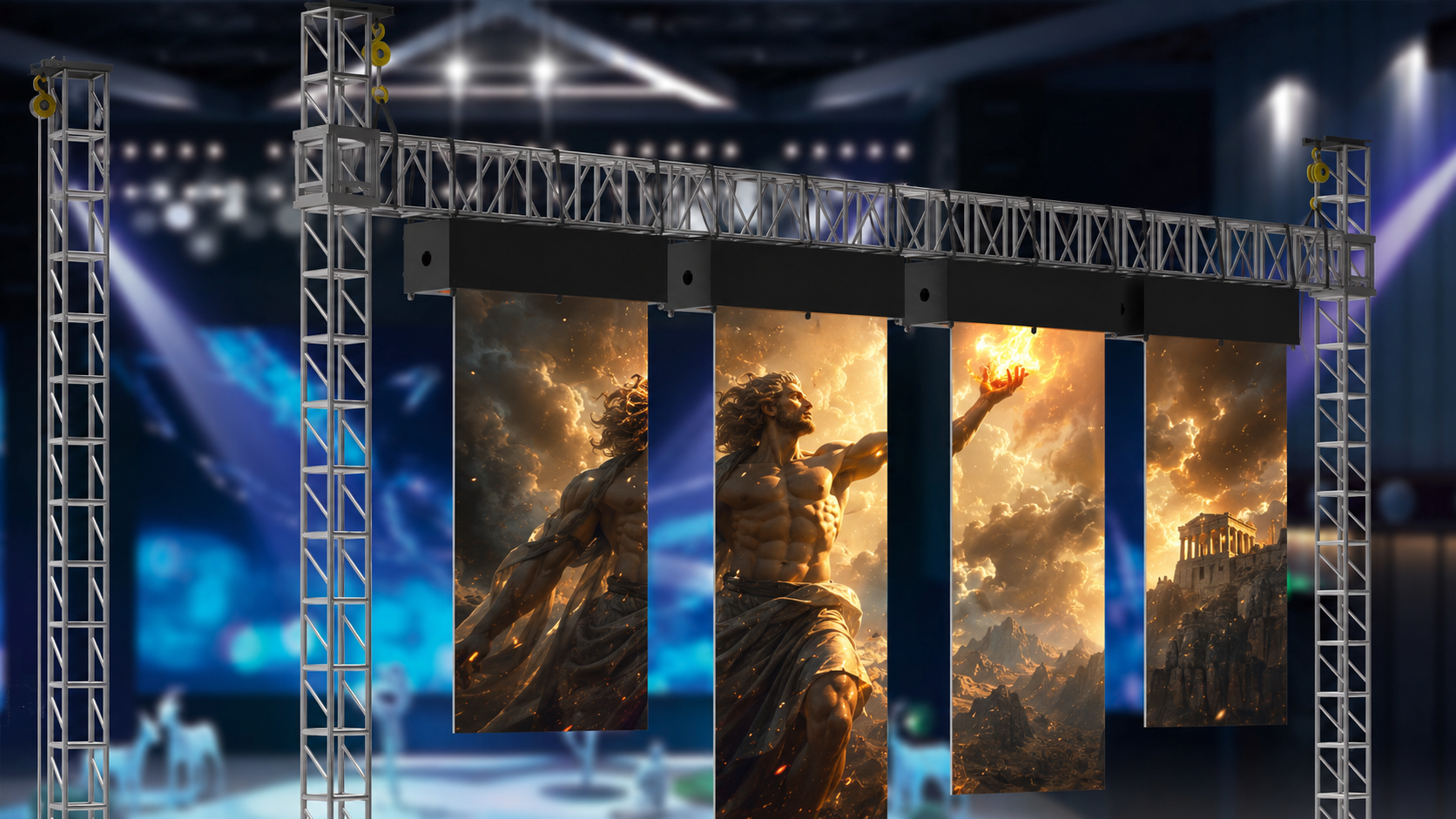

Equipped with a high-precision patented motorized system, the display operates with unmatched stability and smoothness, providing a professional, high-brightness backdrop for premium conferences and educational settings.
Featuring a 36V safety low-voltage design with an external power supply, the system significantly reduces the risk of electrical leakage—ensuring peace of mind in classrooms, churches, and high-traffic commercial spaces.
v

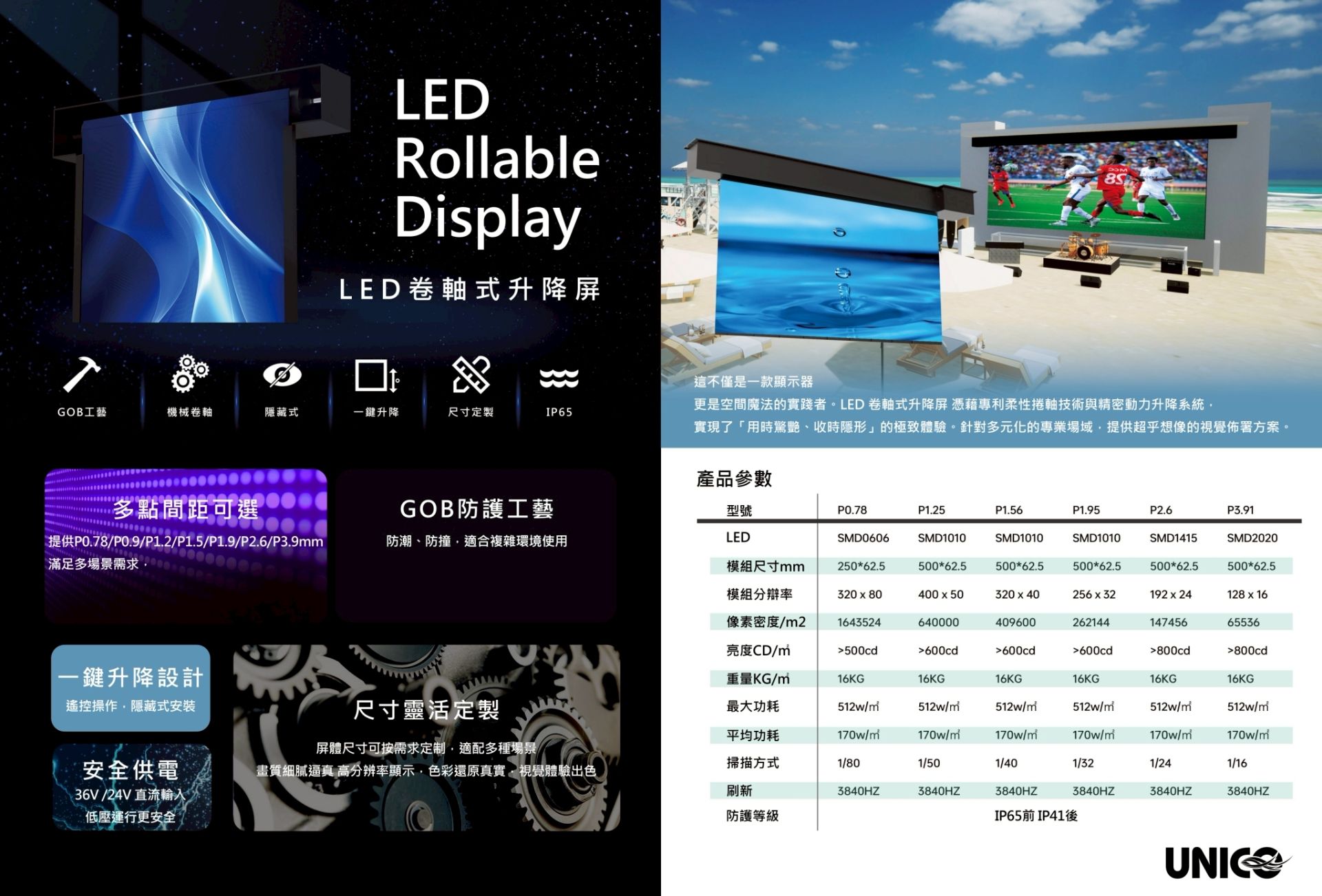

Prometheus Series | Rollable LED Display Technical Specifications
| Item | P 0.78 | P 1.25 | P 1.56 | P 1.95 | P 2.6 | P 3.91 |
|---|---|---|---|---|---|---|
| LED | SMD0606 | SMD1010 | SMD1010 | SMD1010 | SMD1415 | SMD2020 |
| Module Size (mm) | 250 * 26.5 | 500 * 26.5 | 500 * 26.5 | 500 * 26.5 | 500 * 26.5 | 500 * 26.5 |
| Module Resolution | 320 X 80 | 400 X 50 | 320 X 40 | 256 X 32 | 192 X 24 | 128 X 16 |
| Pixel Density / m² | 1643524 | 640000 | 409600 | 262144 | 147456 | 65536 |
| Brightness (cd/m²) | >500 | >600 | >600 | >600 | >800 | >800 |
| Weight (kg/m²) | 16 kg (excluding structural/mechanical components) | |||||
| Maximum Power Consumption | 512w/m² | |||||
| Average Power Consumption | 170w/m² | |||||
| Scanning Mode | 1/80 | 1/50 | 1/40 | 1/32 | 1/24 | 1/16 |
| Refresh Rate | 3840Hz | |||||
| Protection Rating (IP Rating) | IP65 Front / IP41 Rear | |||||
