16:9 DIANA Series / Fixed Frame Projection Screen
Inspired by the purity of the Moon Goddess, the DIANA Series delivers flawlessly smooth, wrinkle-free visuals for an uncompromising cinematic viewing experience.
Four-side embedded tensioning installation ensures even screen tension, effectively eliminating the “V-shape” and water ripple effects commonly found on traditional screen surfaces, resulting in a perfectly flat projection surface.
Adjustable mounting bracket design with a 73 mm to 100 mm adjustable range and 2 mm thick aluminum alloy construction for enhanced durability and installation flexibility.
Proprietary semi-curved frame structure design developed in-house to provide a wider viewing angle and improved visual immersion.
Hidden hook mounting design allows the brackets to be concealed behind the frame surface. Available in black or yellow options for enhanced installation adaptability and aesthetic refinement.

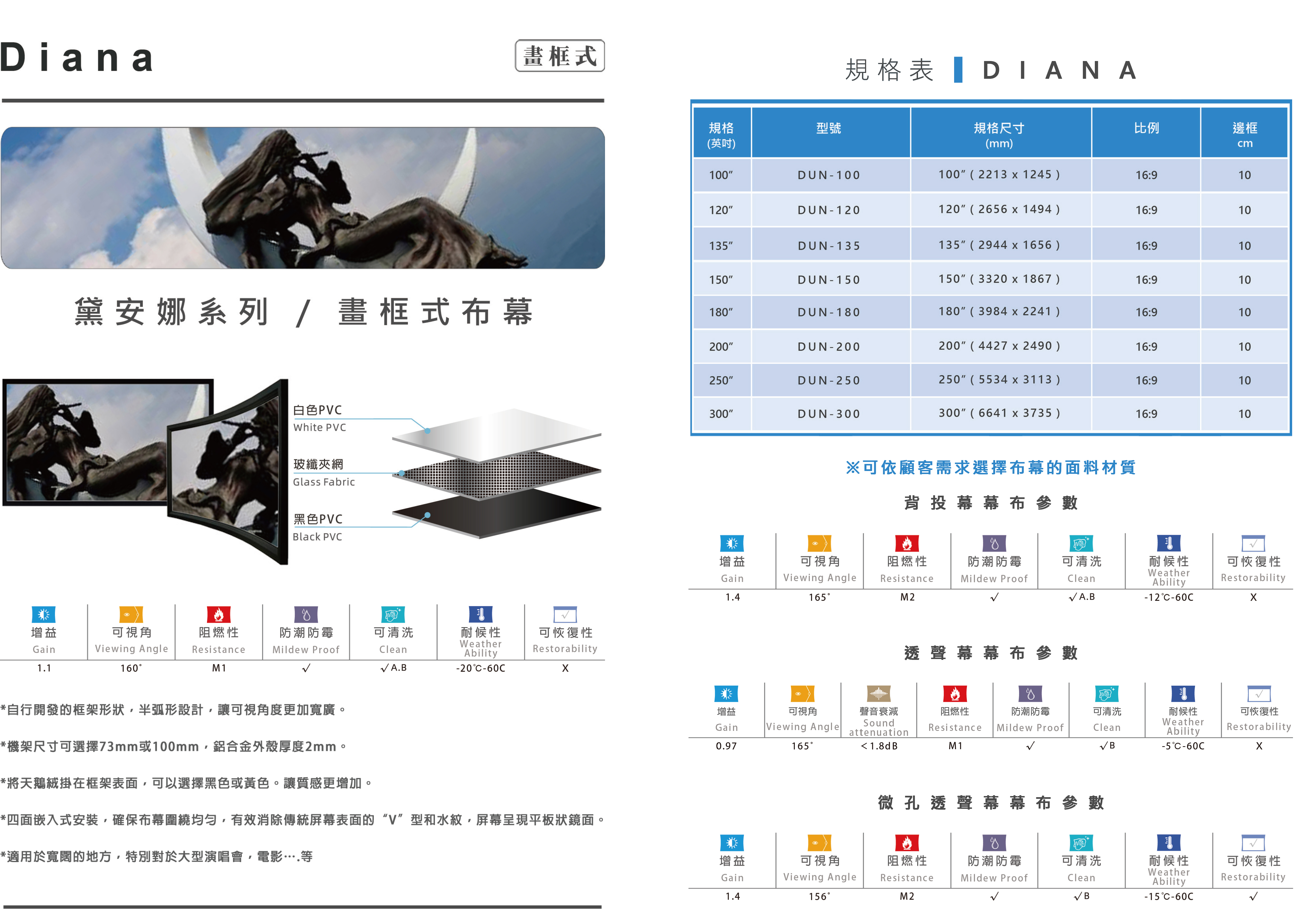

| Size | Model |
Screen Dimensions (mm) |
Frame Width (cm) |
|---|---|---|---|
| 100” | DUN-100 | 2213 x 1245 | 10 |
| 120” | DUN-120 | 2656 x 1494 | 10 |
| 135” | DUN-135 | 2944 x 1656 | 10 |
| 150” | DUN-150 | 3320 x 1867 | 10 |
| 180” | DUN-180 | 3984 x 2241 | 10 |
| 200” | DUN-200 | 4427 x 2490 | 10 |
| 250” | DUN-250 | 5534 x 3113 | 10 |
| 300” | DUN-300 | 6641 x 3735 | 10 |
