16：9 Gaia Series / Dual-Stage Tab-Tension Motorized Screen
🔌Power Cord Location: Left side when facing the screen.
Equipped with the world’s most advanced high-torque shaft-type tubular motor, featuring an anti-vibration electromagnetic braking system for ultra-quiet operation, exceptional durability, and long-lasting performance.
No longer requiring dual-
motor drive, it reduces
control complexity and
maintenance costs,
achieving installation
convenience comparable to
standard projection screens.
Designed with fixed mounting brackets for easy installation on walls or ceilings, providing simple and convenient setup.
Built-in automatic stop system with adjustable upper and lower limit positions.
Features a concealed accessory design, with no exposed connectors or assembly screws on either side of the screen housing.
The weighting system uses a heavy-duty screen leveling device (balancing bar) designed for extra-large and heavy screens, ensuring optimal screen flatness.
Optional IR infrared remote control available for office automation and smart home integration.
Tab-tension technology ensures an ultra-flat surface, using a high-resolution, high-gain, and highly stretchable optical screen material to deliver bright, high-definition, and distortion-free images.
For installation instructions, please visit:
Home → Downloads → Screens → Gaia Installation Manual Download

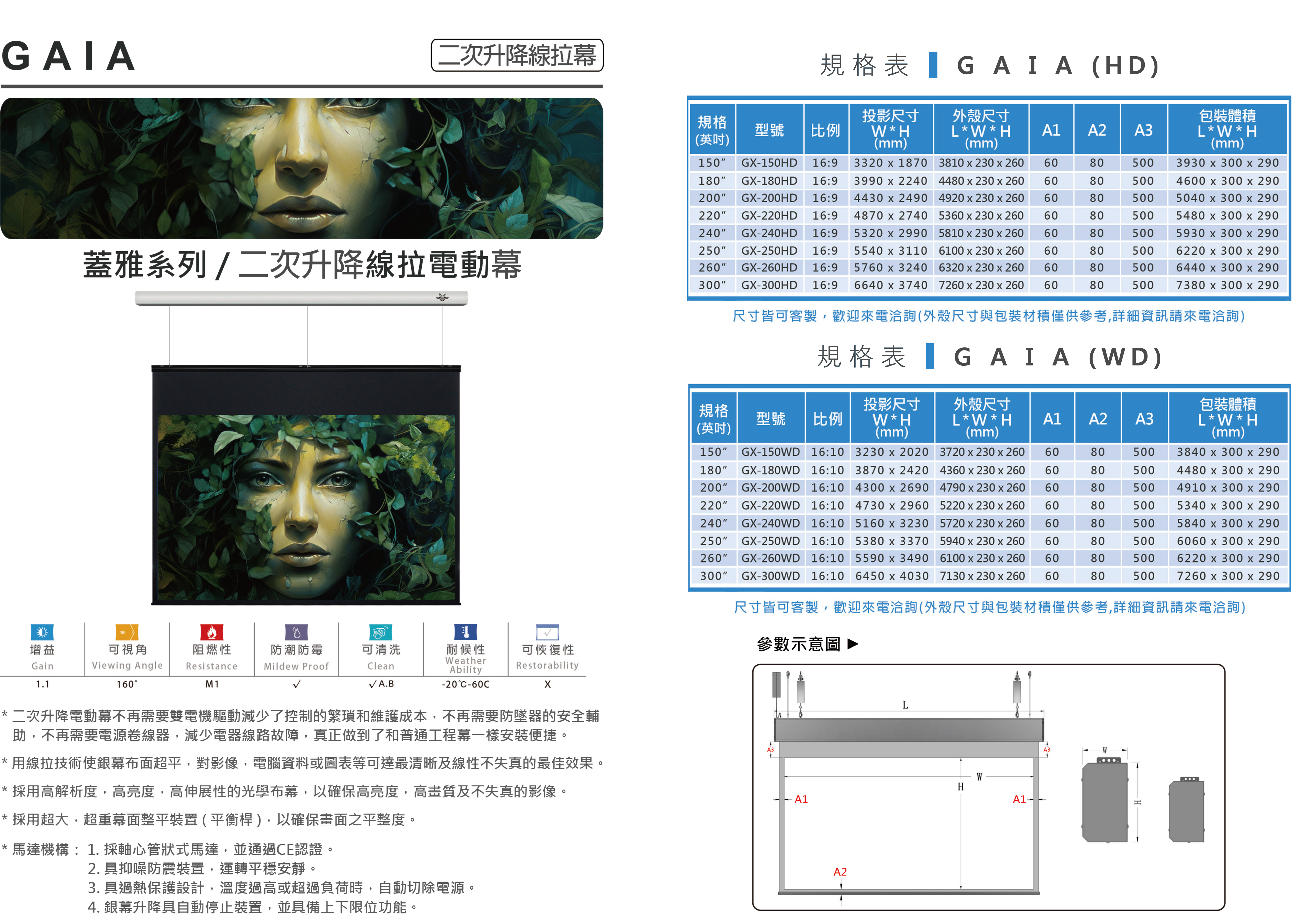

| Size | Model No. |
Viewing Area W x H (mm) |
Product Dimensions |
A1 | A2 | A3 | Carton dimensions L x W x H (mm) |
|---|---|---|---|---|---|---|---|
| 150” | GX-150HD | 3320 x 1870 | 3810 x 230 x 260 | 60 | 80 | 500 | 3930 x 300 x 290 |
| 180” | GX-180HD | 3990 x 2240 | 4480 x 230 x 260 | 60 | 80 | 500 | 4600 x 300 x 290 |
| 200” | GX-200HD | 4430 x 2490 | 4920 x 230 x 260 | 60 | 80 | 500 | 5040 x 300 x 290 |
| 220” | GX-220HD | 4870 x 2740 | 5360 x 230 x 260 | 60 | 80 | 500 | 5480 x 300 x 290 |
| 240” | GX-240HD | 5320 x 2990 | 5810 x 230 x 260 | 60 | 80 | 500 | 5930 x 300 x 290 |
| 250” | GX-250HD | 5540 x 3110 | 6100 x 230 x 260 | 60 | 80 | 500 | 6220 x 300 x 290 |
| 260” | GX-260HD | 5760 x 3240 | 6320 x 230 x 260 | 60 | 80 | 500 | 6440 x 300 x 290 |
| 300” | GX-300HD | 6640 x 3740 | 7260 x 230 x 260 | 60 | 80 | 500 | 7380 x 300 x 290 |
|
All sizes are customizable. Please contact us for more information. (Housing dimensions and packaging sizes are for reference only; please contact us for detailed specifications.) |
|||||||
