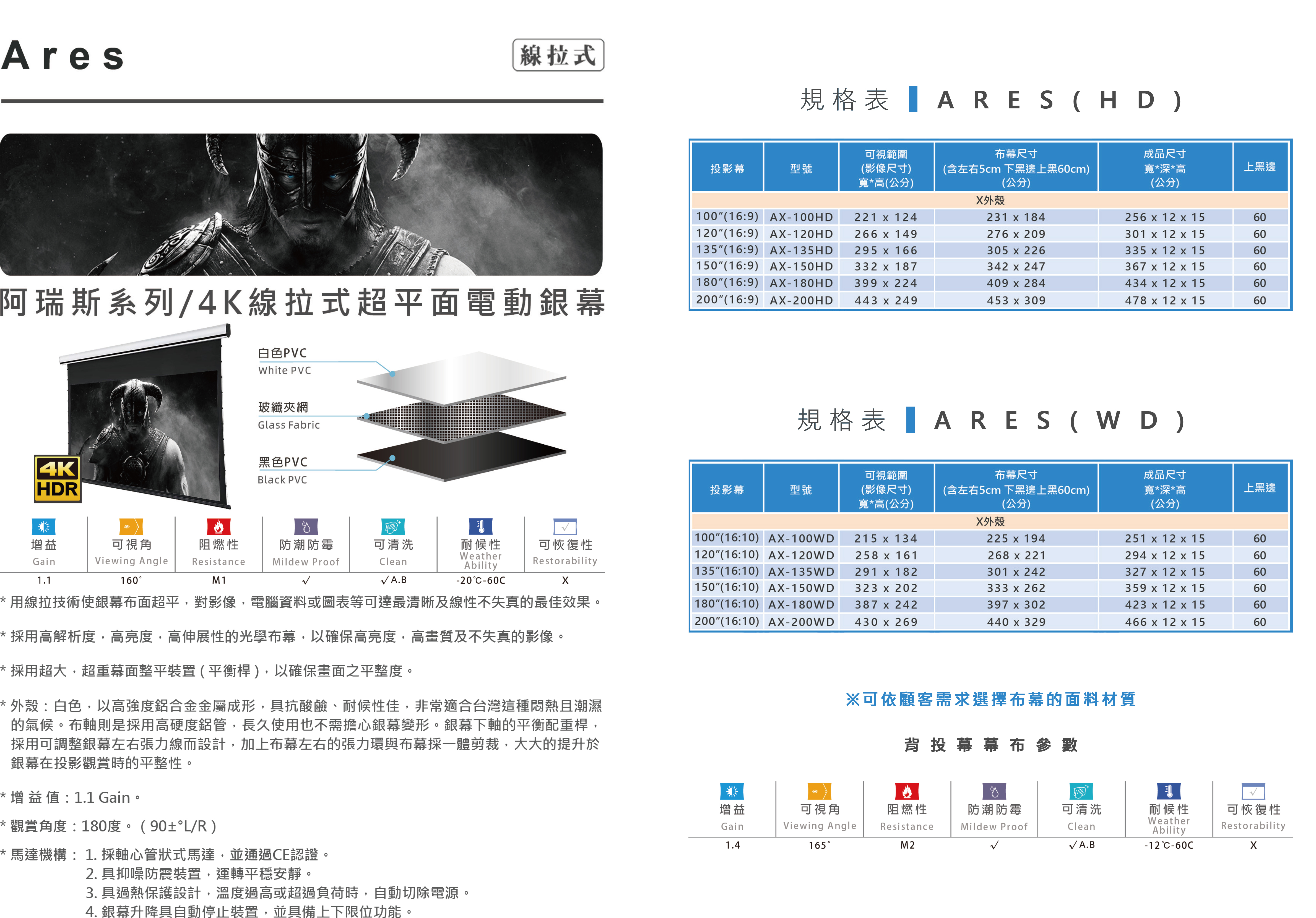

16：10 Ares Series / 4K Tab-Tensioned Ultra-Flat Motorized Screen
🔌Power Cord Location: Left side when facing the screen.
⏹︎ Product Highlights
Equipped with the world’s most advanced high-torque shaft-type tubular motor, featuring an anti-vibration electromagnetic braking system and built-in overheat protection.
The streamlined lightweight
housing features a white
piano-gloss finish and is
formed from high-strength
aluminum alloy, offering
excellent resistance to acids,
alkalis, and weathering.
Sliding rail or fixed bracket mounting design for easy wall or ceiling installation.
Built-in automatic stop system with adjustable upper and lower limit positions
Hidden accessory design keeps connectors and assembly screws concealed for a clean, elegant finish
The weighting system uses a heavy-duty screen leveling device (balancing bar) designed for large and heavy screens, ensuring optimal flatness and image stability.
Optional IR infrared remote control available for office automation and smart home integration.
Tab-tension technology ensures an ultra-flat surface, using a high-resolution, high-gain, and highly stretchable optical screen material to deliver bright, high-definition, and distortion-free images.
| Size | Model No. |
Viewing Area W x H (cm) |
Overall Screen Dimensions (Incl. Borders) W x H (Incl. 5cm Borders & 60cm Top Drop) |
Product Dimensions (Incl. Brackets) W x D x H cm |
Top Drop |
|---|---|---|---|---|---|
| Case Series: X (Ares) | |||||
| 100” | AX-100WD | 215 x 134 | 225 x 199 | 251 x 12 x 15 | 60 |
| 120” | AX-120WD | 258 x 161 | 268 x 226 | 294 x 12 x 15 | 60 |
| 135” | AX-135WD | 291 x 182 | 301 x 247 | 327 x 12 x 15 | 60 |
| 150” | AX-150WD | 323 x 202 | 333 x 267 | 359 x 12 x 15 | 60 |
| 180” | AX-180WD | 387 x 242 | 397 x 307 | 423 x 12 x 15 | 60 |
| 200” | AX-200WD | 430 x 269 | 440 x 334 | 466 x 12 x 15 | 60 |
| 250” | AX-250WD | 538 x 336 | 548 x 401 | 587 x 16 x 20 | 60 |
| 300” | AX-300WD | 645 x 403 | 655 x 468 | 694 x 23 x 28 | 60 |
| 350” | AX-350WD | 753 x 471 | 763 x 536 | 802 x 23 x 28 | 60 |
| 400” | AX-400WD | 860 x 538 | 870 x 603 | 909 x 30 x 36 | 60 |
| 420” | AX-420WD | 905 x 565 | 915 x 630 | 955 x 30 x 40 | 60 |
