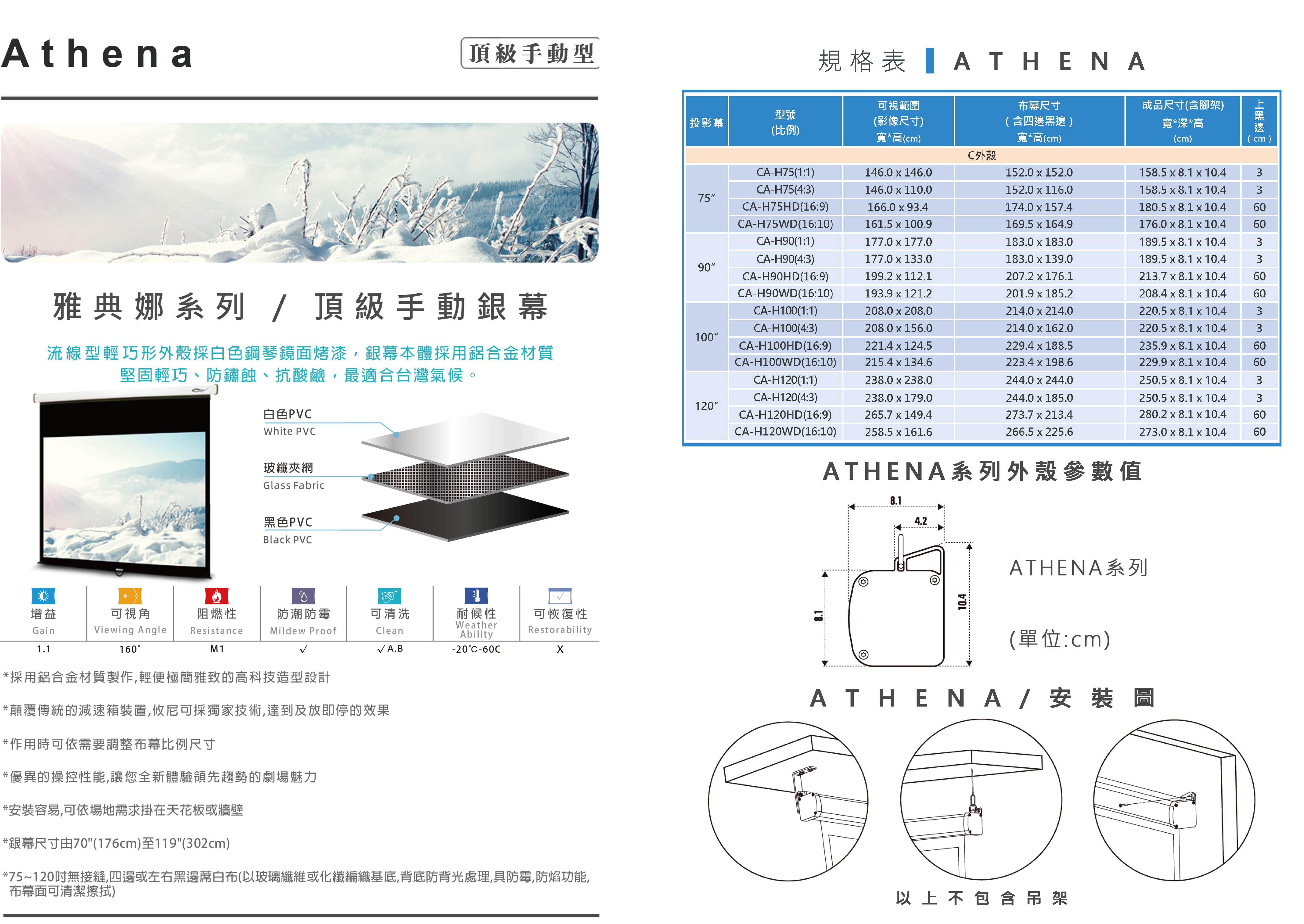

16：9 Athena Series / Premium Manual Screen
The streamlined lightweight housing features a white piano-gloss finish, while the screen body is made of aluminum alloy, offering a strong yet lightweight structure with excellent resistance to rust, acids, and alkalis.
Easy to install, and can be mounted on either the ceiling or wall according to the site requirements.
A revolutionary gearbox design, featuring UNICO’s proprietary technology that enables instant stop-and-go control.
Features a concealed accessory design, with no exposed connectors or assembly screws on either side of the screen housing.
The weighting system uses a hydraulically formed, one-piece horizontally embedded counterweight bar, ensuring the screen remains flat and free from deformation.
The matte white screen surface is available with four-sided or left-and-right black borders, constructed from a fiberglass and synthetic fiber woven base. It features a blackout backing to prevent light penetration, is mildew-resistant and flame-retardant, and the surface can be cleaned and wiped.
| Size | Model No. |
Viewing Area W x H (cm) |
Overall Screen Dimensions (Incl. Borders) W x H (Incl. 4cm Borders & 60cm Top Drop) |
Product Dimensions (Incl. Brackets) W x D x H cm |
Top Drop |
|---|---|---|---|---|---|
| Case Series: C (Athena) | |||||
| 75” | CA-H75HD | 166.0 x 93.4 | 174.0 x 157.4 | 180.5 x 8.1 x 10.4 | 60 |
| 90” | CA-H90HD | 199.2 x 112.1 | 207.2 x 176.1 | 213.7 x 8.1 x 10.4 | 60 |
| 100” | CA-H100HD | 221.4 x 124.5 | 229.4 x 188.5 | 235.9 x 8.1 x 10.4 | 60 |
| 120” | CA-H120HD | 265.7 x 149.4 | 273.7 x 213.4 | 280.2 x 8.1 x 10.4 | 60 |
